Note | The max. load current must not be exceeded by the total current of all connected conductors. |

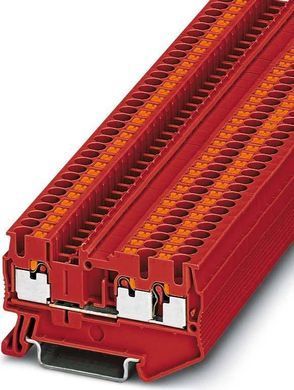

Product type | Multi-conductor terminal block |
Area of application | Machine building |
Plant engineering | |
Process industry | |

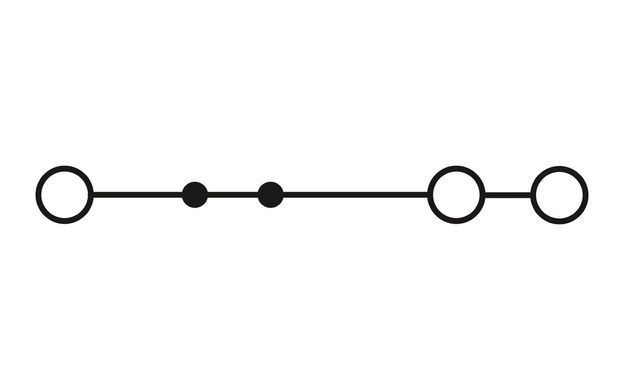

Number of connections | 3 |
Number of rows | 1 |
Potentials | 1 |
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 0.77 W |
Number of connections per level | 3 |
Nominal cross section | 2.5 mm² |
Stripping length | 8 mm ... 10 mm |
Internal cylindrical gage | A3 |
Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.14 mm² ... 4 mm² |
Cross section AWG | 26 ... 12 (converted acc. to IEC) |
Conductor cross section flexible | 0.14 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² |
Nominal current | 24 A (with 2.5 mm² conductor connection cross section) |
Maximum load current | 30 A (with 4 mm² conductor cross section, rigid) |
Nominal voltage | 800 V |
Nominal cross section | 2.5 mm² |
Connection cross sections directly pluggable | |
Conductor cross section rigid | 0.34 mm² ... 4 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.34 mm² ... 2.5 mm² |
Rated data (ATEX/IECEx) | |
Identification | II 2 G Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C |
Ex-certified accessories | 3030488 D-ST 2,5-TWIN |
3036602 DS-ST 2,5 | |
3030789 ATP-ST-TWIN | |
1204517 SZF 1-0,6X3,5 | |
3022276 CLIPFIX 35-5 | |
3022218 CLIPFIX 35 | |
List of bridges | Plug-in bridge / FBS 2-5 / 3030161 |
Plug-in bridge / FBS 3-5 / 3030174 | |
Plug-in bridge / FBS 4-5 / 3030187 | |
Plug-in bridge / FBS 5-5 / 3030190 | |
Plug-in bridge / FBS 10-5 / 3030213 | |
Plug-in bridge / FBS 20-5 / 3030226 | |
Bridge data | 19 A / 2.5 mm² |
Ex temperature increase | 40 K (19 A / 2.5 mm²) |
Rated voltage | 550 V |
for bridging with bridge | 550 V |
- At bridging between non-adjacent terminal blocks | 352 V |
- At cut-to-length bridging | 220 V |
- At cut-to-length bridging with cover | 275 V |
- At cut-to-length bridging with partition plate | 550 V |
Rated insulation voltage | 500 V |
output | (Permanent) |
Ex level General | |
Rated current | 19 A |
Maximum load current | 23 A |
Contact resistance | 1.03 mΩ |
Ex connection data General | |
Nominal cross section | 2.5 mm² |
Rated cross section AWG | 14 |
Connection capacity rigid | 0.14 mm² ... 4 mm² |
Connection capacity AWG | 26 ... 12 |
Connection capacity flexible | 0.14 mm² ... 2.5 mm² |
Connection capacity AWG | 26 ... 14 |
Width | 5.2 mm |
End cover width | 2.2 mm |
Height | 35.2 mm |
Height NS 35/15 | 44 mm |
Height NS 35/7,5 | 36.5 mm |
Height | 1.437 " |
Length | 60.5 mm |
Color | red |
Flammability rating according to UL 94 | V0 |
Insulating material group | I |
Insulating material | PA |
Static insulating material application in cold | -60 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Mechanical data | |
Open side panel | Yes |
Ambient conditions | |
Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C () |
Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5 |
NS 35/15 |
