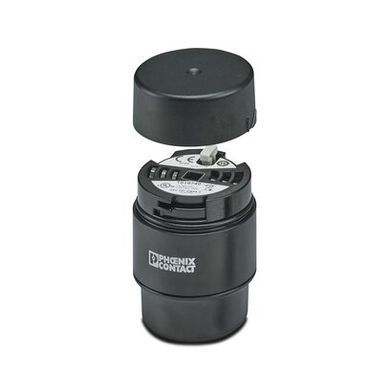

This connection element is intended to be part of a modular signal tower and is used to electrically connect the tower. According to your requirements, a signal tower may comprise any combination of up to five signal elements. You may use up to five optical signal elements or up to four optical and one audible signal element. Only use an audible signal element as the top element. A bayonet locking system establishes the mechanical and electrical connection between the elements. Please note that PSD-S 50 signal towers (50 mm diameter) are not mechanically compatible with PSD-S signal towers (70 mm diameter).
| Product type | Assembly element |
| Scope of delivery | End cover and seal |
| without ferrule | |
| Connection method | Push-in connection |
| Conductor cross section, flexible | 0.5 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
| With ferrule | |
| Connection method | Push-in connection |
| Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
| solid | |
| Connection method | Push-in connection |
| Conductor cross section, rigid | 0.5 mm² ... 1.5 mm² |
| Stripping length | 7 mm |
| Height | 58.7 mm |
| Diameter | 50 mm |
| Color | black |
| Material | PA-GF |
| Ambient conditions | |
| Degree of protection | IP65, when installed |
| Ambient temperature (operation) | -30 °C ... 60 °C |
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
| Mounting type | Base mounting |
| Assembly instructions | Seal included |
| Mounting position | any |
| Item number | 1018740 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Product Key | DRL116 |
| GTIN | 4055626503851 |
| Weight per Piece (including packing) | 79.9 g |
| Weight per Piece (excluding packing) | 79.9 g |
| Customs tariff number | 85319000 |
| Country of origin | AT |
